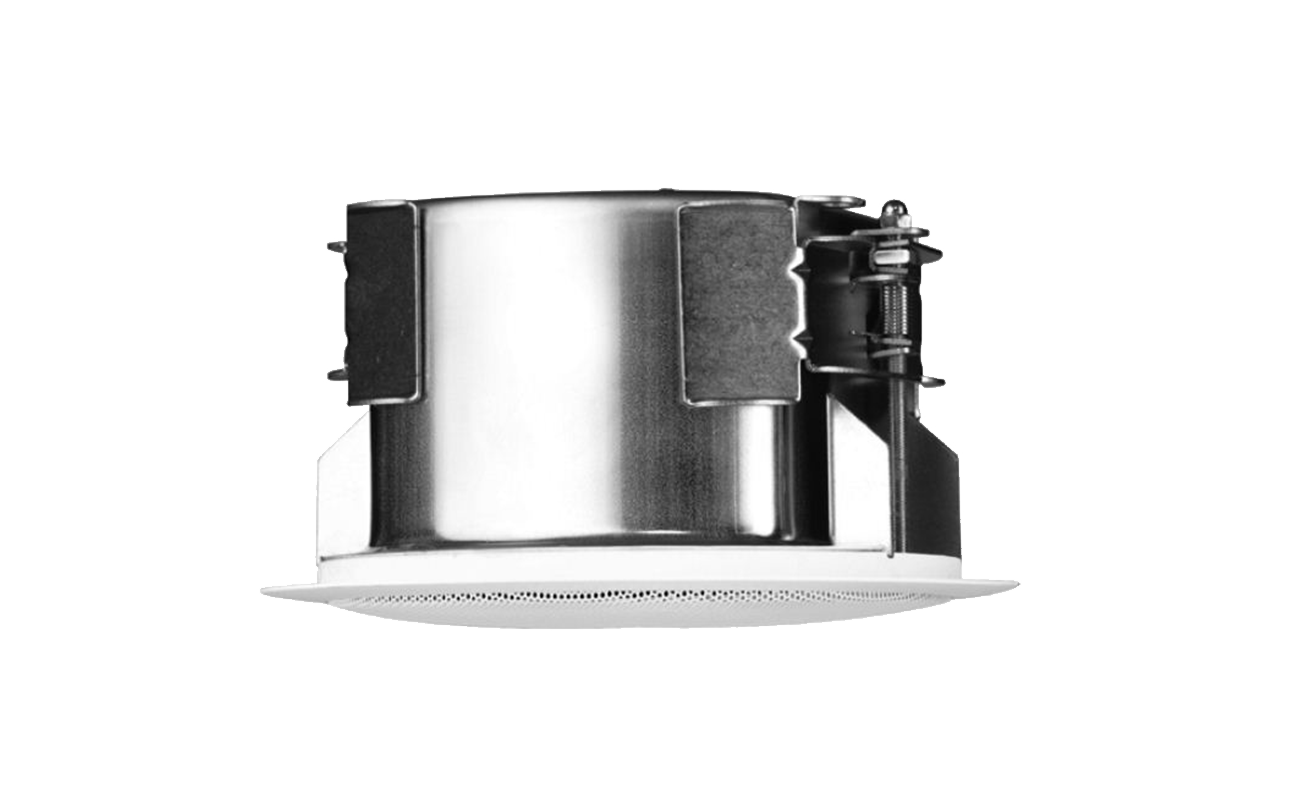

Reduced amplification costs and maximum efficiency of 88.0 dB sensitivity, 16 ohm impedance and a sealed enclosure.Easy-access six-position tap switch for 25/70.7/100-volt and 16 ohm transformer bypass settings allows for easy ordering, stocking and installation.One 8 inch (203 mm) polypropylene woofer with butyl rubber surround and one 1.0 inch (25.4 mm) silk dome tweeter.Engineered for applications with limited plenum space incorporating a SoundTubespecific shallow backcan with an installed depth of 3.5 inches.Pre-construction bracket (AC-CMEZ6/8-PCB) junction box (AC-CM. Tile bridge, UL-listed flex conduit clamp, paint shield, cutout tem. Six-position rotary switch with transformer bypass positionĢ03 mm (8 in.) Polypropylene cone, butyl rubber surround Owner's Manual | Tech Sheet | A&E Specs | GLL | EASE 4.0 | EASE 3.0 | CLF1 | CLF2 | DWG | DXF | PDF Drawing | EN54 Certification | UL CertificateĪBS Glass Fiber Reinforced, Injection Molded, SealedĬonduit Clamp, Cover Plate, Grille, Paint Maskīlack Grille (GRL-CM6/8EZ-II-BK)|Tile Bridge (AC-CMEZ6/8-TB)|Pre-Construction Bracket (AC-CMEZ6/8-PCB)|Junction Box (AC-CM-EZ-JBOX)ĭirectivity Factor (Q) (Averaged 100Hz - 10kHz, 2kHz)ĭirectivity Index (DI) dB (Averaged 100Hz - 10kHz, 2kHz)īlack, Standard-Flange, Friction-Fit, Paintable, Painted, SteelĦ.8-inch coaxial, in-ceiling, sealed (64-watt transformer forĥ.2 (averaged 100 Hz - 10 kHz) 6.8 (2 kHz)ĥ.5 dB (averaged 100 Hz - 10 kHz) 8.3 dB (2 kHz) Included accessories: Tile bridge, UL-listed 0.5-inch flex conduit clamp, paint shield and two wire nuts. Adaptable to material thicknesses ranging from 0.04 inch (0.9 mm) 1.60 inch (40.6 mm). Suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. Ceramic input terminal accepts up to 10 gauge plenum rated signal wire and includes thermal fuse. Incorporates a painted steel grille for lasting durability.
Cost-effective 16 ohm settings allows for the use of multiples of two, four, or six speakers in a system using a standard amplifier without a trans former.

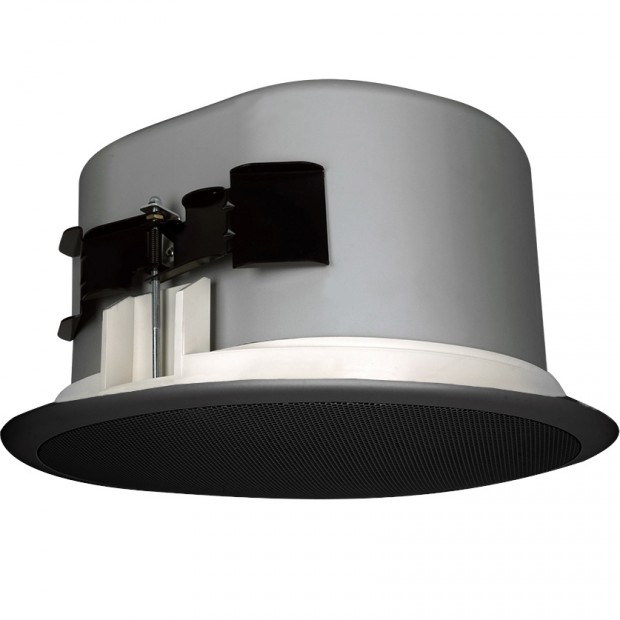

Superior voice intelligibility with a 10 kHz coverage angle of 80 (independently verified). Reduced amplification costs with maximum efficiency including 90.5 dB sensitivity and 16 ohm impedance. Easy-access six-position tap switch for 25/70.7/100-volt and 16 ohm transformer bypass position allows for easy ordering, stocking and installation. One 6.50 in (165.0 mm) treated fiber woofer with cloth surround and one 1.00 in (25.4 mm) silk dome tweeter. Engineered for applications with limited plenum space, incorporating a SoundTube-specific shallow backcan with an installed depth of only 3.5 inches. The next generation version of the CM62-EZs with improved and additional features. SoundTube CM62-EZs-II Coaxial In-Ceiling Speaker in Black
